Ceiling Booms

Features

• Boom Bracket

• 360° Ceiling Mount

Specifications

• Inlet: 1/4″ BSP F

• Outlet: 1/4″ BSP F

• Pressure: 3,200 PSI (3,650 Max.)

• Flow: 40 L/min

• Temp: 90°C

• Material: Stainless Steel

• O-Ring: EPDM

• Weight: 6.3 kg

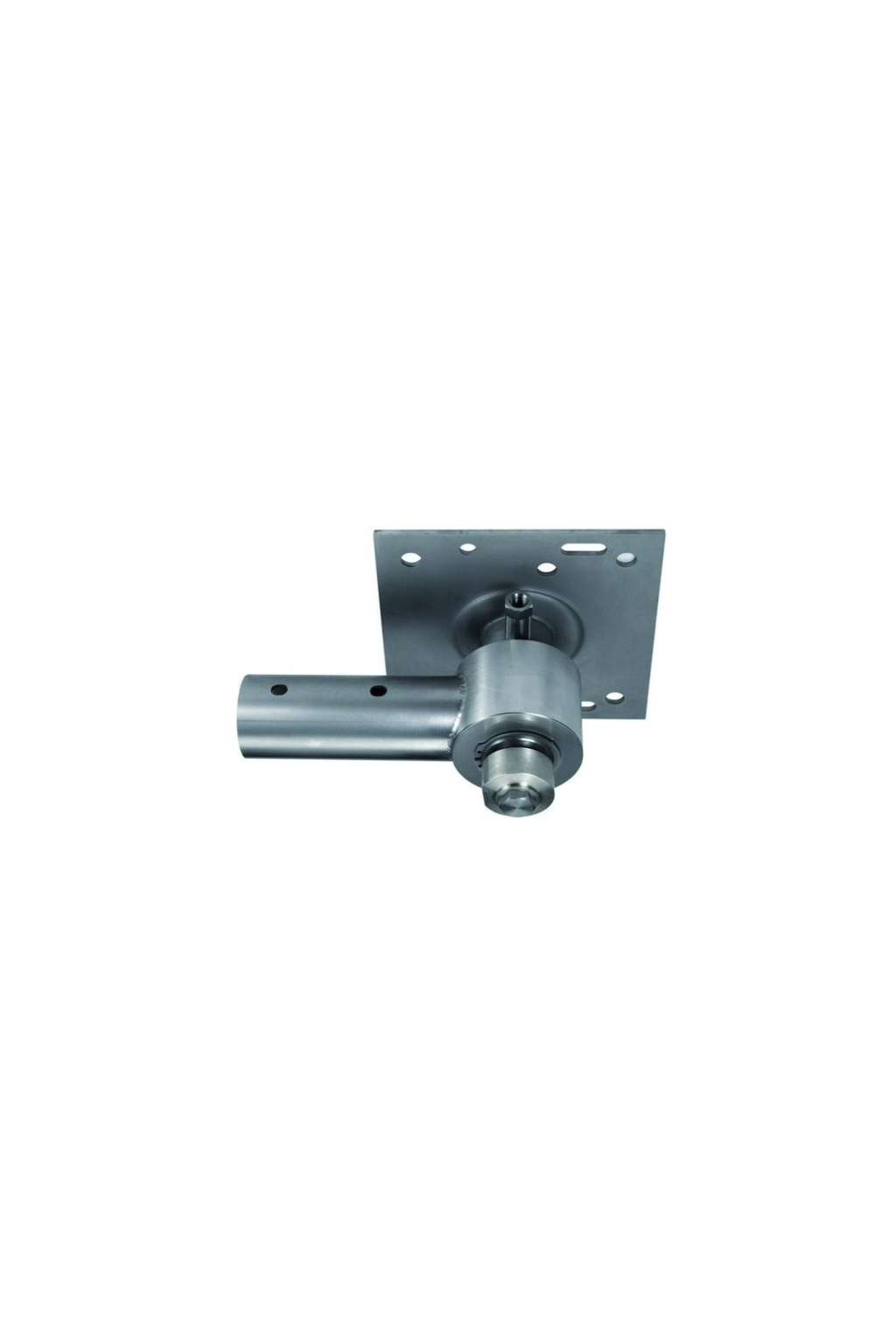

PRODUCT CODE 0.999.6005 BOOM BRACKET CEILING MOUNT 360 DEGREE

Features

• New spring hooking system.

• Item to be fitted with brackets PRODUCT CODE 0.999.6005

• High chemical resistance flexible hoses.

Specifications

• Rated Pressure: 3,200 PSI

• Permissible Pressure: 3,625 PSI

• Rated Flow: 45 L/min

• Rated Temperature: 90 °C

• Inlet: 1/4″ BSP Male

• Outlet: 1/4″ BSP M Swivel & 3/8 BSP M Swivel

• Length: 1,600 mm – 3,000 mm

• Weight: 6.1 kg – 9.9 kg

PRODUCT CODE 0.999.6010 BOOM ARM STRAIGHT 1600mm

PRODUCT CODE 0.999.6011 BOOM ARM STRAIGHT 2000mm

PRODUCT CODE 0.999.6012 BOOM ARM STRAIGHT 2500mm

PRODUCT CODE 0.999.6013 BOOM ARM STRAIGHT 3000mm

Features

• Adjustable Z style boom

• Dual spring

• Made in Italy

• C Version is a twin Boom & price includes 2 arms

• BOOM INSTALLATION TIP: Set the boom bracket at a 5° angle in the direction of the gun holder. Boom will then naturally swing in that direction.

Specifications

• Mounting: No Mount, Ceiling Mount 360°, Wall Mount 180°, and Double Ceiling 360° options

• Length: 1,550 mm

• Inlet: 1/4” BSP F x 1/4” BSPM

• Working Pressure: 4,060 PSI

• Working Flow: 45 L/min

• Temperature: 120°C

• Material: Stainless

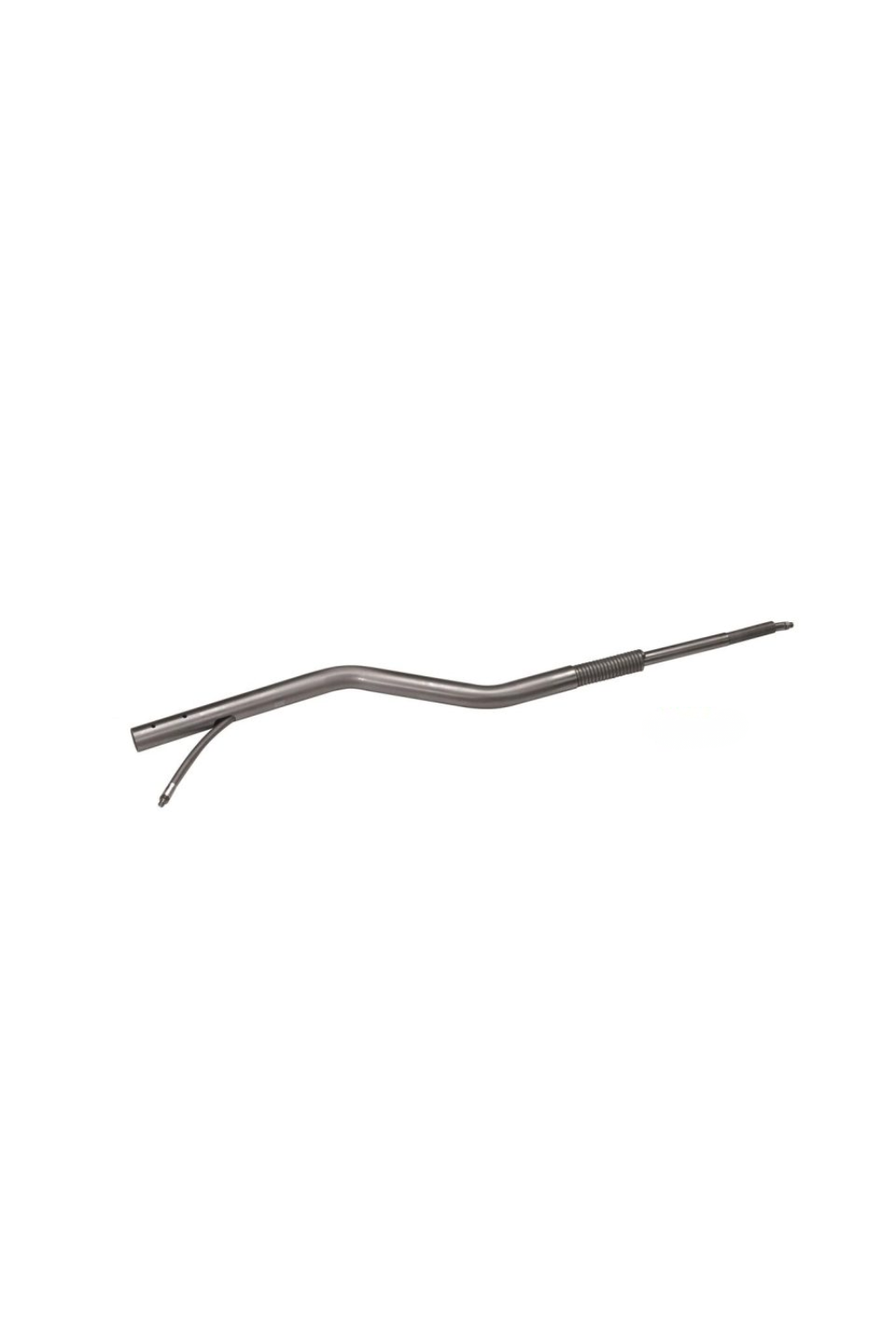

PRODUCT CODE 0.999.6020 BOOM Z ARM 1550MM
