Nipples & Adaptors
Explore our range of Nipples & Adaptors
Features
High Pressure Reduction Double Nipple
Specifications
Inlet: 1/4″ BSP Male
Outlet: 3/8″ BSP Male
Maximum Pressure: 3,625 PSI (4,060 max.)
Material: Brass
PRODUCT CODE 0.999.1010
Features

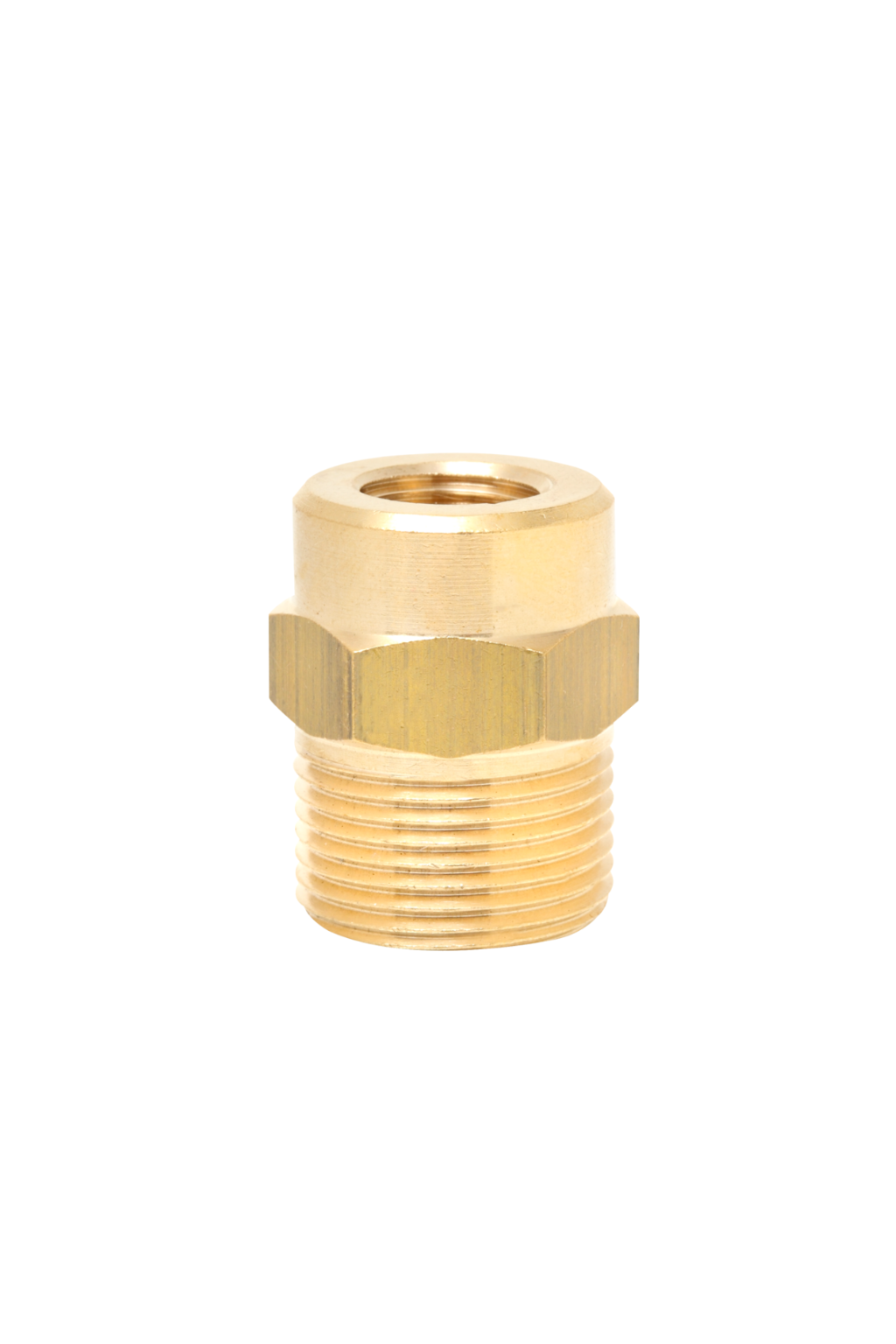

Hex nipple
Male thread
Specifications
Inlet: 1/4″ to 3/4″ BSP and NPT options
Outlet: 1/4″ to 3/4″ BSP and NPT options
Pressure: 5,800 PSI (3,625 PSI option)
Temperature – Max: 150°C
Material: Brass
PRODUCT CODE 0.999.1049
Features
High Pressure Male Double Nipple
Specifications
Inlet: 3/8″ BSP Male
Outlet: 3/8″ BSP Male
Maximum Pressure: 3625 PSI (4,060 max.)
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 0.999.1011
Features
M22 Nipple
ARX Type
3 Piece Non Rotating Pin
Specifications
Inlet: Variable
Outlet: M22 x 1.5 Male Standard 14 mm Pin
Working Flow: 40 L/min
Working Pressure: 3,600 PSI
Maximum Pressure: 4,050 PSI
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 0.999.1013
LAVOR COUPLING BAYONET 1/4M
Specifications
Plug Pro: 1/4″ M
Material: Brass
PRODUCT CODE LAV0.999.0184
Features
M22 Nipple
ARX Type
3 Piece Non Rotating Pin
Specifications
Inlet: Variable
Outlet: M22 x 1.5 Male Standard 14 mm Pin
Working Flow: 40 L/min
Working Pressure: 3,600 PSI
Maximum Pressure: 4,050 PSI
Working Temperature: 150°C
Material: Brass
PRUDUCT CODE 0.999.1014
Features
M22 Nipple
ARX Type
3 Piece Non Rotating Pin
Specifications
Inlet: Variable
Outlet: M22 x 1.5 Male Standard 14 mm Pin
Working Flow: 40 L/min
Working Pressure: 3,600 PSI
Maximum Pressure: 4,050 PSI
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 0.999.1015
Adapter for High-Pressure Lavor Guns
QR Connect for Lavor High Pressure Guns to High Pressure Hoses with thread 1/4 "F
PRODUCT CODE 10002-05351
Will fit the domestic range of guns below
Features
High Pressure Male Double Nipple
Specifications
Inlet: 1/4″ BSP Male
Outlet: 1/4″ BSP Male
Maximum Pressure: 3625 PSI (4,060 max.)
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 0.999.1012
Features
M22 Nipple
ARX Type
3 Piece Non Rotating Pin
Specifications
Inlet: Variable
Outlet: M22 x 1.5 Male Standard 14 mm Pin
Working Flow: 40 L/min
Working Pressure: 3,600 PSI
Maximum Pressure: 4,050 PSI
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 0.999.1018
LAVOR COUPLING BAYONET 1/4F
Specifications
Plug Pro: 1/4″ F
Material: Brass
PRODUCT CODE 10002-05097
Features
M22 Nipple
ARX Type
3 Piece Non Rotating Pin
Specifications
Inlet: Variable
Outlet: M22 x 1.5 Male Standard 14 mm Pin
Working Flow: 40 L/min
Working Pressure: 3,600 PSI
Maximum Pressure: 4,050 PSI
Working Temperature: 150°C
Material: Brass
PRODUCT CODE 00009-03220
