PT70ss Plus Diesel Heater Parts

Diesel Radiant Heater PT125SS spare parts


FUEL NOZZLE FUEL NOZZLE
FUEL NOZZLE
$0.00

Lavor PT125SS Diesel Radiant Heater, the fuel nozzle with a 0.75 gal/h flow rate and a 60° spray angle is the standard specification required for optimal combustion.

Fuel Nozzle Specifications

  • Flow Rate: 0.75 (Gallons per hour)

  • Spray Angle: 60°

  • Pattern: Typically a Solid (S) or Hollow (H) cone depending on the specific burner assembly, though 60° is the critical measurement for this model's heat plate coverage.

PRODUCT CODE: PIS72.036.0110

IGNITER SPARK TRANSFORMER IGNITER SPARK TRANSFORMER
IGNITER SPARK TRANSFORMER
$0.00

IGNITER SPARK TRANSFORMER FOR LAVOR HEATER

  • Input: 120V or 240V (Australian models use the 240V/50Hz version).

  • Output: 16.5 kV (High Frequency).

  • Features: Includes two insulated high-temperature spark plug leads (secondary leads) that connect directly to the electrodes.

PRODUCT CODE PIS75.025.0125

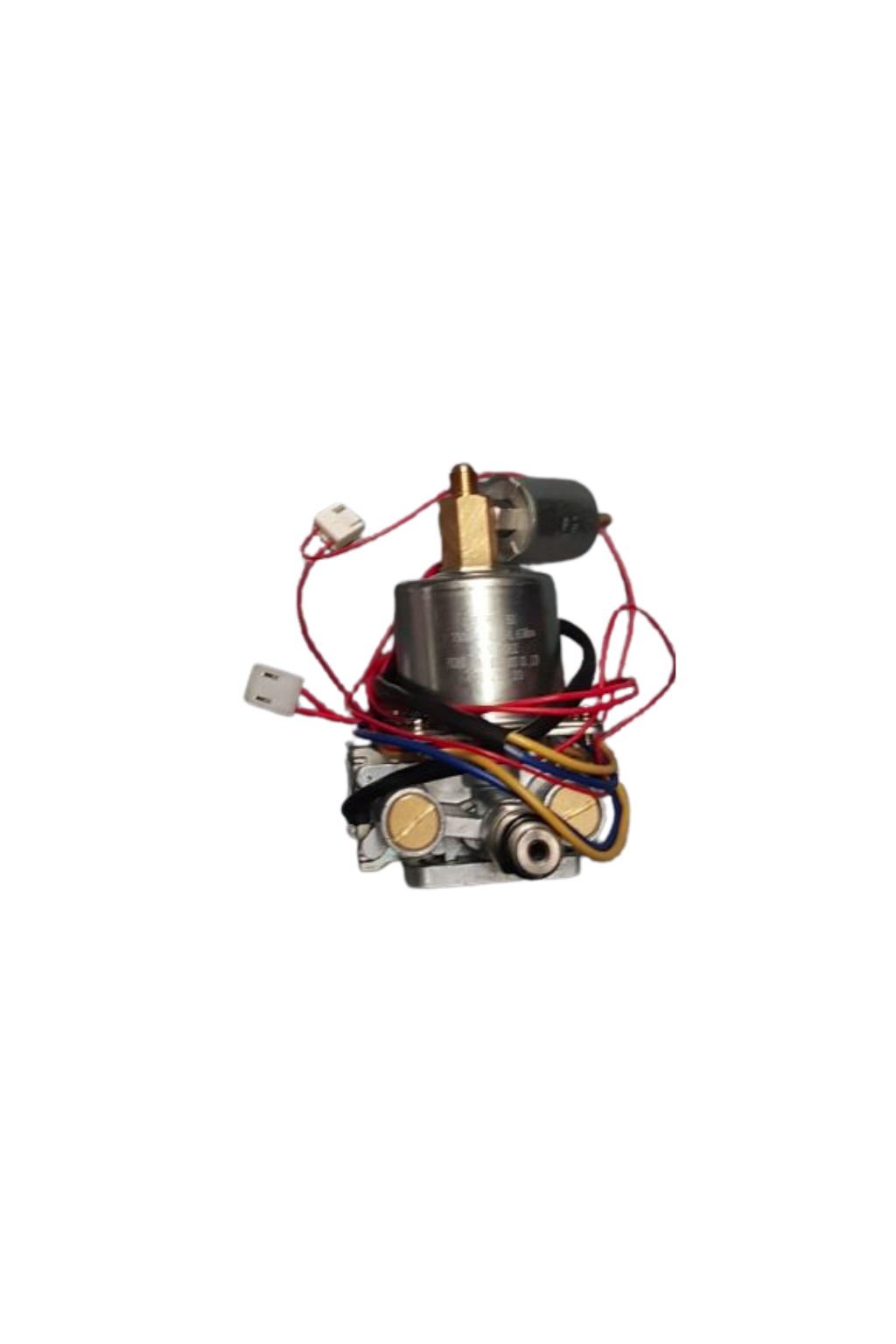

FUEL PUMP FUEL PUMP
FUEL PUMP
$0.00

Lavor PT125SS Radiant Diesel Heater, the fuel pump is the heart of the delivery system, responsible for drawing fuel from the tank and pushing it through the 0.75 nozzle at high pressure.

  • Compatibility: Specifically designed for the PT125SS series.

  • Function: Sustains the high-pressure spray required for the 60-degree atomization pattern.

PRODUCT CODE: PIS72.027.0150

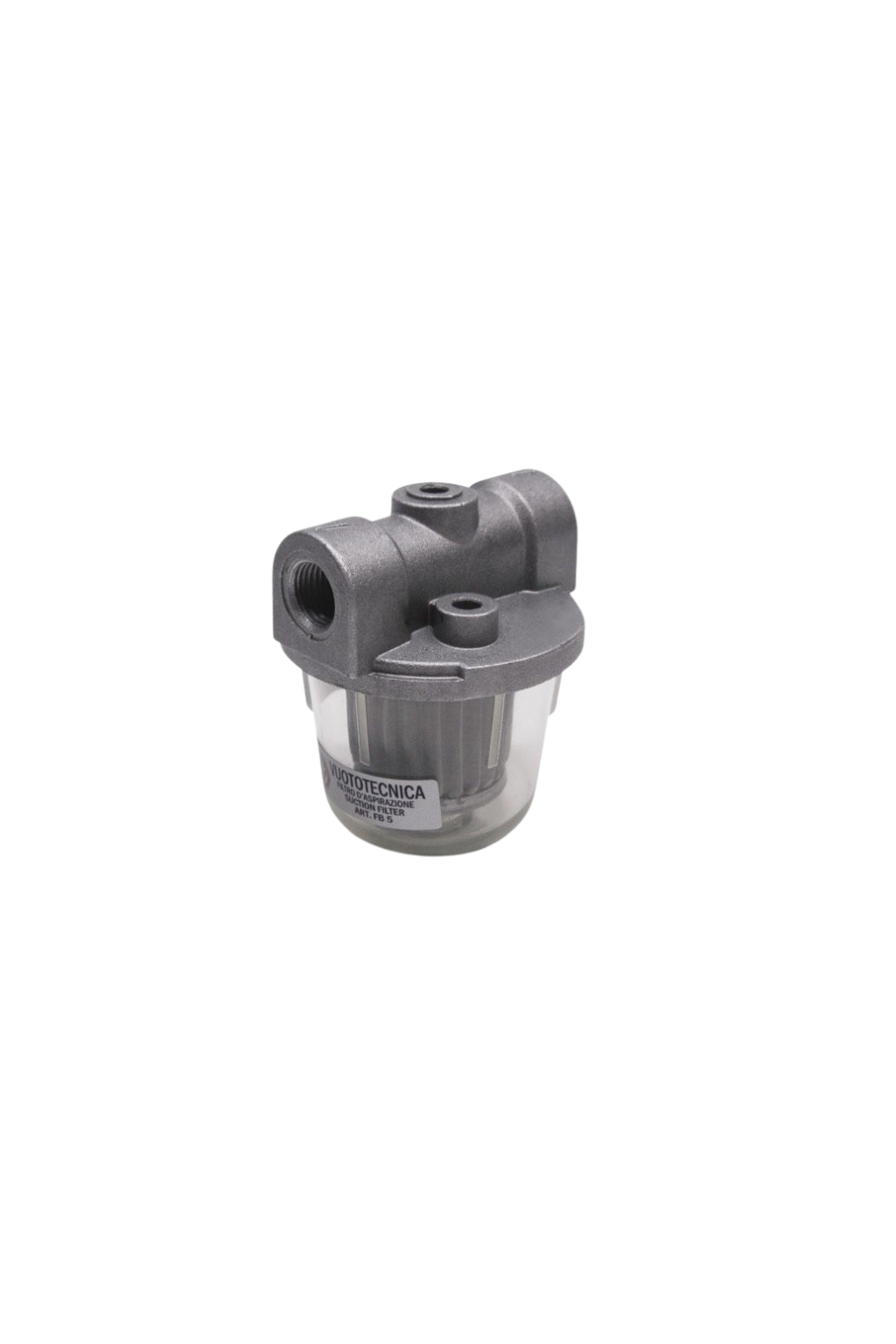

FUEL FILTER FUEL FILTER
FUEL FILTER
$0.00

PT125SS Fuel Filter

  • Function: Specifically designed to trap contaminants before they reach the high-pressure solenoid pump.

  • Design: Clear housing for easy visual inspection of fuel quality and filter saturation.

  • Compatibility: Fits Lavor PT125SS and PT70SS radiant heater models.

  • Connection Size: Standard barbed fittings for 1/4" (6mm) fuel lines.

Specification

  • Filter Media: Fine Mesh / Sintered Polymer

  • Housing Material: Chemical Resistant Clear Nylon

  • Flow Direction: Unidirectional (Check arrow on housing)

  • Recommended Change: Every 250-500 operating hours

PRODUCT CODE 01.02.72.012510062

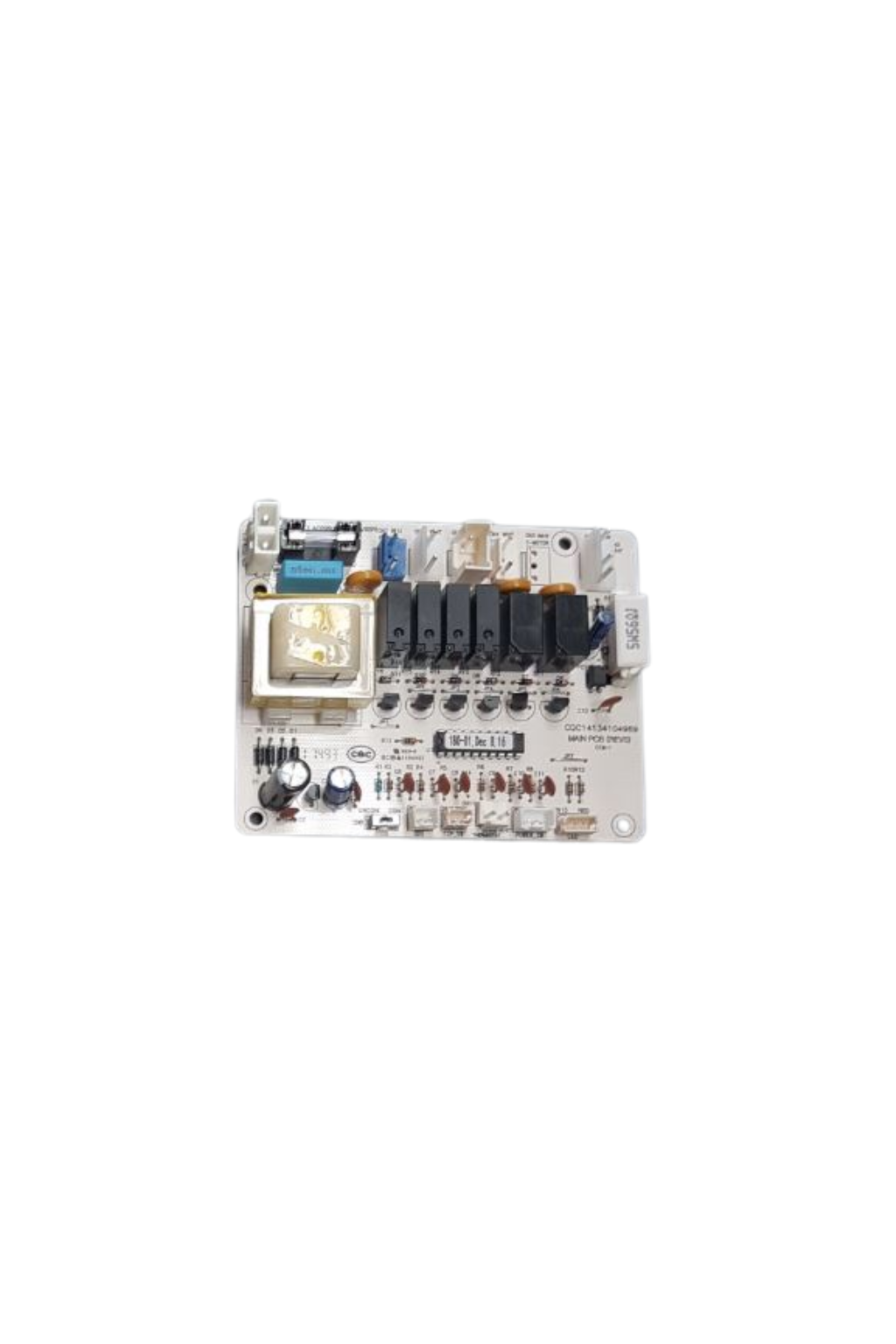

MAIN PCB BOARD MAIN PCB BOARD
MAIN PCB BOARD
$0.00

Main PCB Control Board for PT125SS Radiant Heater This genuine replacement Main PCB Board is the central control unit for the Lavor PT125SS Diesel Radiant Heater. It regulates the solenoid pump timing, spark transformer ignition, and cooling fan cycles.

Designed for high-heat environments, this board features integrated safety logic that automatically shuts down the heater if it detects a flame failure or overheating condition.

Specifications

  • Compatibility: Lavor PT125SS (Radiant Series)

  • Voltage: 220-240V / 50Hz

  • Safety Sensors: Overheat Limit & Photocell Flame Sensor inputs

  • Installation: Plug-and-play wiring harness connectors

PRODUCT CODE: PIS72.025.0450

DIFFUSER CAP DIFFUSER CAP
DIFFUSER CAP
$0.00

Diffuser Cap for PT125SS Radiant Heater

This heavy-duty stainless steel diffuser cap is designed specifically for the Lavor PT125SS radiant heater. It sits at the end of the burner tube to stabilize the flame and optimize the air-fuel mixture.

High-temperature operation can eventually cause the metal to warp or burn through; replacing a damaged diffuser is essential to prevent "sooting" and ensure the heater runs at maximum efficiency.

Specifications

Compatibility: Lavor PT125SS / PT70SS Plus

Material: High-Grade Heat-Resistant Stainless Steel

Position: Burner Head Assembly

Function: Flame shaping and air turbulence

PRODUCT CODE: PIS72.036.0210
