Pumps
Explore our range of Pumps
Features
Built-In Uniflow Unloader
Built-In Chemical Injector with Inner Stainless Steel Parts
Cremic Coated 15mm Pistons
HP and Suction seals
Stainless Steel High-pressure Valves
Brass Pump head
Industrial Duty Construction for Extended Life
Sight glass for oil inspection
3/4″ BSP TAP INLET
3/4″ Hollow Shaft with Flange for Coupling to suit from 6.5HP to 7HP Engine
Product Specs
RPM (3400)
Flow Rate (L/m-11)
Requested Power (hp/kW)6.5-7/5.5-6.9
Maximum Pressure (bar)200
Maximum Pressure (psi)3000
Oil Capacity Level to sight glass indicator
Oil Type SAE30 Mineral Oil
Weight (Kg)7.0
PRODUCT CODE:LAV5.700.0050

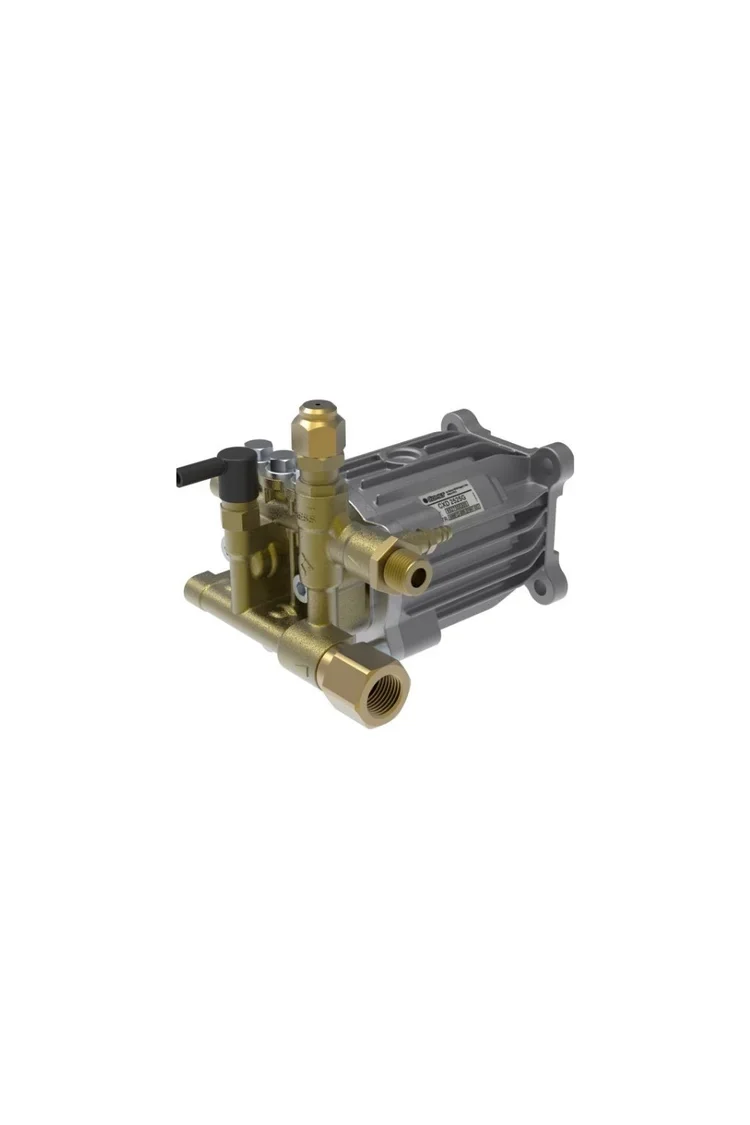

Features
Built-In Uniflow Unloader
Built-In Chemical Injector with Inner Stainless Steel Parts
Stainless Steel Plungers
Stainless Steel Unitized Check Valves
Forged Brass Manifold
Industrial Duty Construction for Extended Life
Patent Registered Ball Bearing Design
Built-In Garden Hose Adapter
Double-Sealing Buna-Textile U-Packing
3/4″ Hollow Shaft with Flange for Coupling to Gas Engines
Product Specs
Shaft Size (Diameter)-Ø 3/4"
Shaft Style-Hollow Shaft -Female
Inlet Connections-3/4" BSP
Outlet Connections-M22 15mm Internal
RPMs-3400
Pump Head-Brass
Built-In Unloader-Yes
Oil Capacity-85ml
Oil Type-80w 40
Weight-3 kgs
Max Temperature-40° C
PRODUCT CODE:10002-10429
CHECK OUT THE COUPLING RANGE FOR THE OUTLET
