Water Filters

Features

• Universal Compatibility: Features a 3/4" Female inlet and 3/4" Male outlet, making it compatible with most domestic and industrial pressure washers, including Lavor models.

• Pump Protection: Extends the life of your equipment by filtering out sand, grit, and particles before they reach the high-pressure pump.

• Easy Maintenance: The transparent housing allows for quick visual inspection of the filter's condition. The internal mesh can be easily removed and rinsed.

Specifications

• Inlet Connection: 3/4" BSP Female

• Outlet Connection: 3/4" BSP Male

• Housing Material: Heavy-duty Clear Composite

• Filter Type: Washable Fine Mesh

• Application: Cold water supply only

PRODUCT CODE 00070-00479

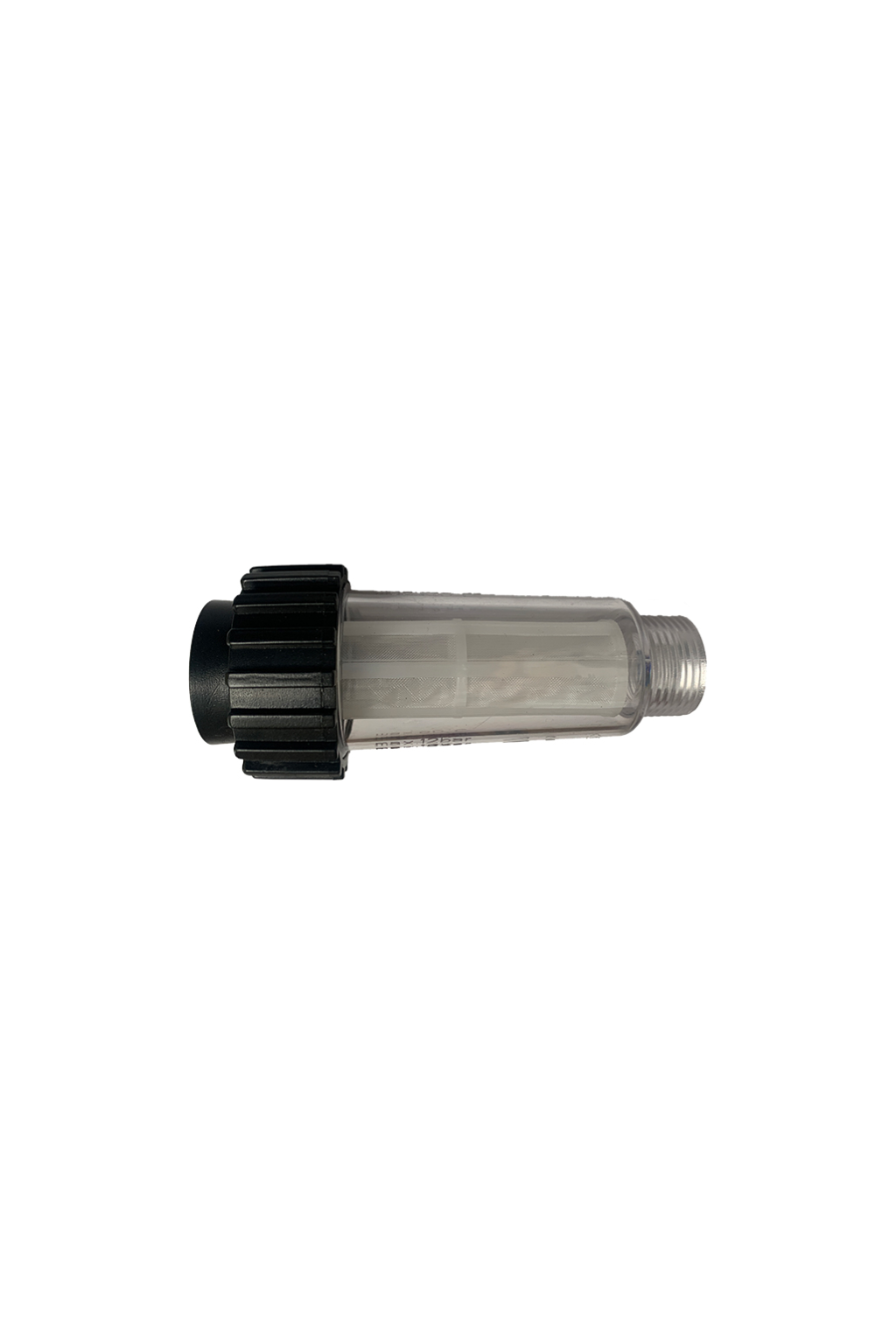

Product Overview

The Lavor Domestic Water Filter is an essential line of defense for your pressure washer. Designed to screw directly onto the water inlet of your machine, it prevents sand, sediment, and debris from entering the pump, preventing costly damage and maintaining consistent water pressure.

Features

• Universal Fitting: Equipped with a 3/4" Female (F) inlet to connect to your garden hose and a 3/4" Male (M) outlet to connect to the pressure washer inlet.

• Clear Inspection Housing: The transparent body allows you to see when the filter is dirty without needing to disassemble it.

• Washable Mesh: Features a durable, removable internal mesh filter that can be rinsed and reused indefinitely.

• Compatibility: Fits all Lavor domestic pressure washers and most other standard consumer brands (Karcher, Ryobi, etc.) using 3/4" threads.

Specifications

• Inlet: 3/4" BSP Female

• Max Pressure:12 Bar (Standard mains water)

• Maintenance: Tool-free cleaning

PRODUCT CODE 00009-02316

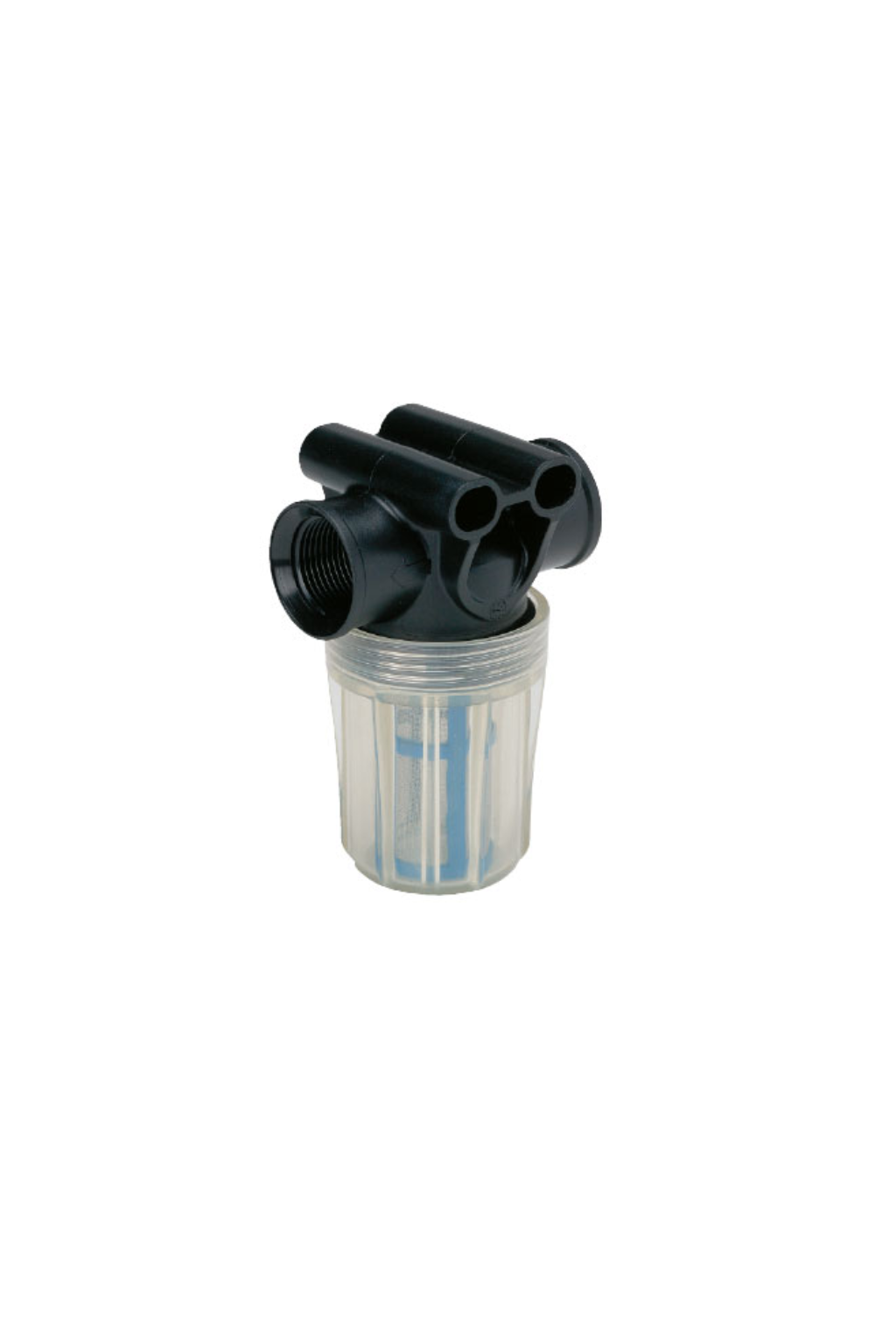

Product Overview

The Lavor Cartridge Water Filter is a high-capacity pre-filter designed for both domestic and commercial pressure washers. Unlike standard mesh filters, the cartridge system provides a larger surface area for filtration, ensuring maximum water flow while trapping finer particles that can damage your pump’s internal valves and seals.

Key Features

• Dual 3/4" Threading: Features a 3/4" Female (F) inlet for standard hose connections and a 3/4" Female (F) outlet for direct machine mounting. 210 MICRON

• Heavy-Duty Housing: Transparent, reinforced plastic allows for instant monitoring of sediment buildup.

• Replaceable/Washable Cartridge: The internal cartridge can be removed for deep cleaning or replaced when the filtration element becomes worn.

Technical Specifications

• Inlet Connection: 3/4" BSP Female

• Outlet Connection: 3/4" BSP Female

• Max Water Temp: 60°C (140°F)

• Max Pressure: 15 Bar / 175 PSI

• Micron: 210

• Compatibility: Lavor, Karcher, Nilfisk, and all 3/4" inlet machines

PRODUCT CODE 0.900.9999

Product Overview

The Brass Inlet Water Filter is a premium filtration solution designed for high-flow pressure washers. Featuring a robust brass head and a transparent bowl for easy monitoring, this filter protects your pump from contaminants while offering additional ports for integrated system monitoring.

Key Features

• Heavy-Duty Brass Construction: The inlet/outlet head is forged from solid brass for maximum thread durability and resistance to vibration.

• Integrated Accessory Ports: Includes two 1/4" BSP ports, perfect for installing pressure gauges, sensors, or chemical injectors directly into the water line.

• Visual Maintenance: The clear high-impact bowl allows you to see exactly when the internal filter requires cleaning.

• High Flow Capacity: Engineered to support flow rates up to 30 L/min, making it suitable for professional-grade petrol and electric pressure cleaners.

Technical Specifications

• Max Flow Rate30 L/min

• Inlet Connection3/4” Female Garden Hose

• Outlet Connection1/2” NPT Male

• Accessory Ports2x 1/4″ BSP Female (Plugged)

• Max Temperature40°C

• Housing MaterialBrass Head / Reinforced Clear Polymer Bowl

PRODUCT CODE 0.999.1040

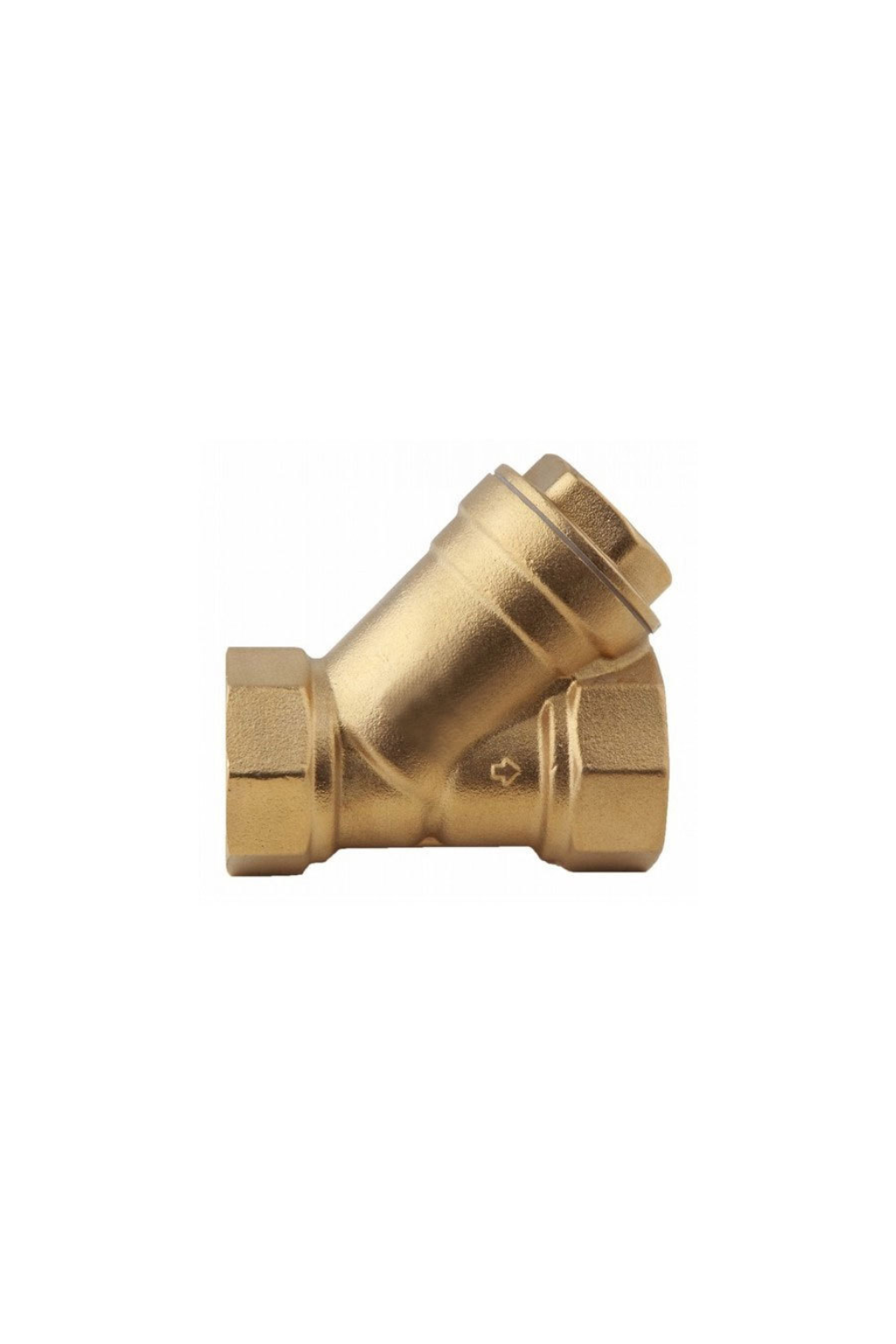

Product Overview

The Heavy-Duty Y Brass Strainer is an industrial-grade filtration component designed for high-pressure systems and permanent installations. Its "Y" configuration allows for effective sediment collection and easy cleaning without disconnecting the main plumbing.

Key Features

• Solid Brass Construction: Forged brass body provides exceptional strength and longevity, rated for high-pressure environments up to 225 PSI.

• Precision Filtration: Equipped with a 45 Mesh / 354 Micron stainless steel screen to capture fine particles, protecting pump valves and nozzles from wear.

• High-Flow Performance: Supports flow rates up to 30 L/min, ensuring no loss in performance for professional pressure cleaners.

• Versatile Threading: Available in both 1/2" and 3/4" BSP Female configurations to suit various pipe and hose setups.

Technical Specifications

• Material: Forged Brass Body

• Max Pressure: 225 PSI

• Max Flow: 30 L/min

• Filtration: 45 Mesh / 354 Micron Stainless Steel

• Connections: BSP Female Inlet/Outlet

PRODUCT CODE 0.999.1048 - Y Brass Straine 3/4" BSP F

PRODUCT CODE 0.999.1047 - Y Brass Straine 1/2" BSP F

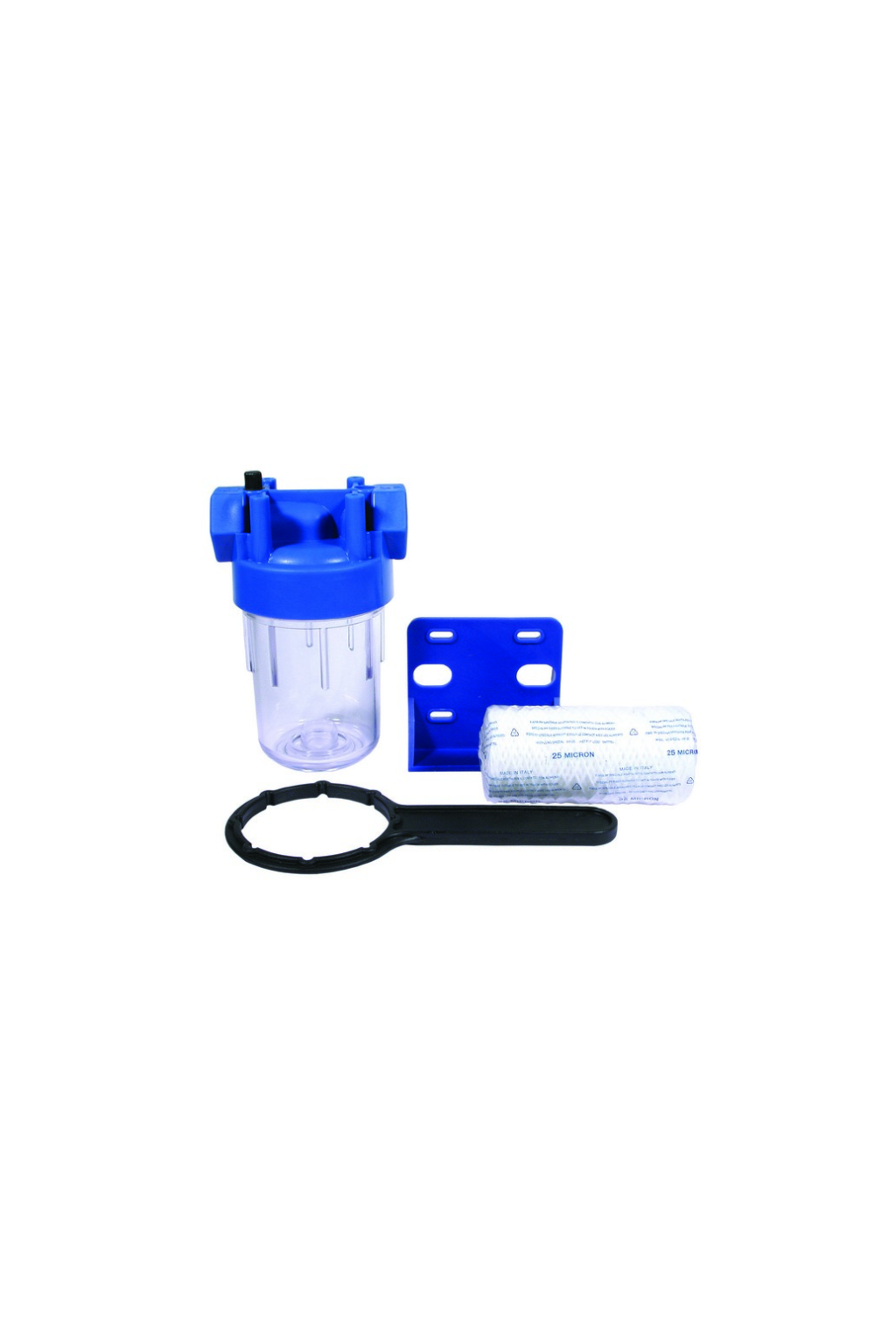

Product Overview

The Industrial Cartridge Water Filter Housing is a high-capacity filtration solution designed for consistent water purity in demanding environments. Featuring a reinforced clear bowl and a dedicated spanner wrench for easy servicing, this unit is built to house standard 5" x 2.5" cartridges, providing superior protection for your pump and nozzles.

Key Features

• Standard 1/2" FNPT Ports: Equipped with 1/2" Female NPT inlet and outlet ports for a secure, leak-free connection to your water supply line.

• Fiber Filtration: Designed to work with high-efficiency fiber cartridges to trap fine sediment, scale, and rust particles.

• Service-Friendly Design: Includes a custom spanner wrench, allowing for quick and easy removal of the cap for cartridge inspections or replacements.

• Transparent Bowl: The high-impact clear housing provides a 360° view of the filter condition, so you know exactly when it’s time to clean or swap the element.

Specifications

• Port Size:1/2″ FNPT (Inlet/Outlet)

• Cartridge Size: 5" x 2.5"

• Filter Media: Fibre Filter Cartridge

• Included Accessories: Heavy-duty Spanner Wrench

• Housing Material: Clear Reinforced Polymer

PRODUCT CODE 0.999.1045
